# Road Drainage Outfall

![CC-Outfall-Lining-Graham-Construction-Titan](https://casestudies.titanenviro.com/hs-fs/hubfs/CC-Outfall-Lining-Graham-Construction-Titan.jpeg?width=2399&height=2288&name=CC-Outfall-Lining-Graham-Construction-Titan.jpeg)

Industry

Civil Infrastructure

Challenge:

The steep slope of a Saskatoon roadway made traditional outfall lining methods like articulated concrete mats or gabion systems impractical, leading to increased installation time and costs.

Achievement:

Concrete Canvas was installed across eight outfalls in just two days, providing a durable, impermeable solution with rapid deployment and minimal labor, earning high praise from the client for its efficiency and ease of use.

Product Used:

Concrete Canvas®

[ titanenviro.com/cc-outfall-lining-graham-construction-titan/ ](https://titanenviro.com/cc-outfall-lining-graham-construction-titan/?hsLang=en)

#### Location: Saskatoon, SK

#### Project Type: Product Supply & Installation

#### Product Used: Concrete Canvas® CC8

## Challenge

The client initially considered using concrete articulated mats or gabion systems with an impermeable backing to line eight outfalls on a steep roadside slope in Saskatoon, SK. However, these options posed significant installation challenges due to the slope’s steepness, leading to increased time and costs.

## The Titan Solution

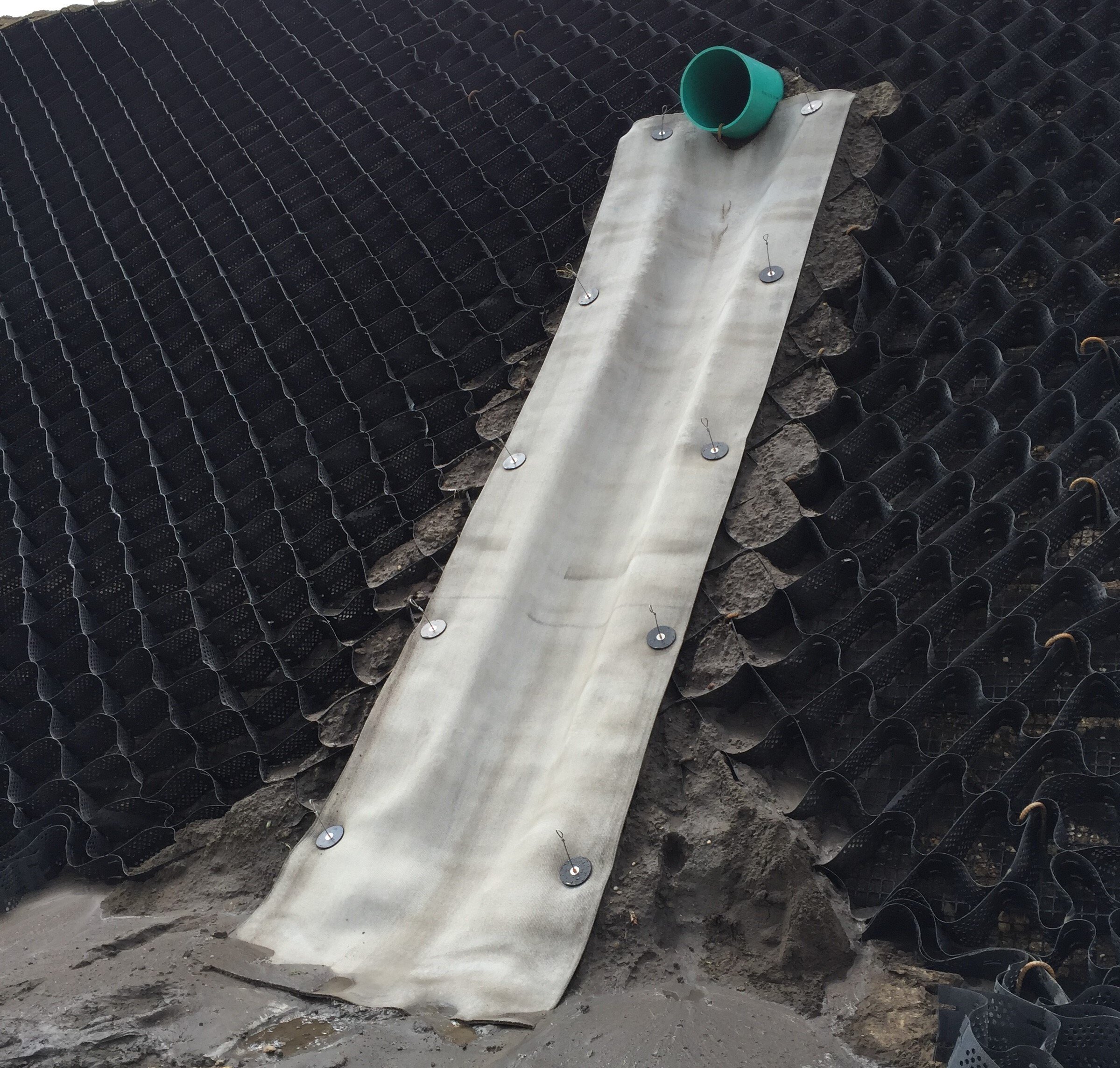

In July 2016, 50 sq. m of 8mm Concrete Canvas (CC8) was installed across eight outfalls, each approximately 1m wide and 6m long. The CC was laid over a newly constructed Geo-Cell stabilized slope, with channels cut and filled with compacted sand to prevent voids. Plywood was used to smooth transitions, and CC was anchored every meter using earth percussion anchors. Hydration was completed using a 275-gallon tote and pump, with installation temperatures averaging 22°C.

> [Concrete Canvas® (CC)](https://titanenviro.com/products/erosion-control/concrete-canvas-geosynthetic-cementitious-composite-mat/?hsLang=en) is a Geosynthetic Cementitious Composite Mat (GCCM), a factory-produced material combining cement within geosynthetic layers that hardens when hydrated for erosion control and weed suppression.

## Achievement

Each outfall was installed in just 2 hours by a crew of four, with the entire project completed in two days. The client was highly impressed with the speed, simplicity, and reliability of the Concrete Canvas solution, deeming the project a great success.
