Agricultural Silo Base Reinforcement – Multi-layer Geosynthetic System

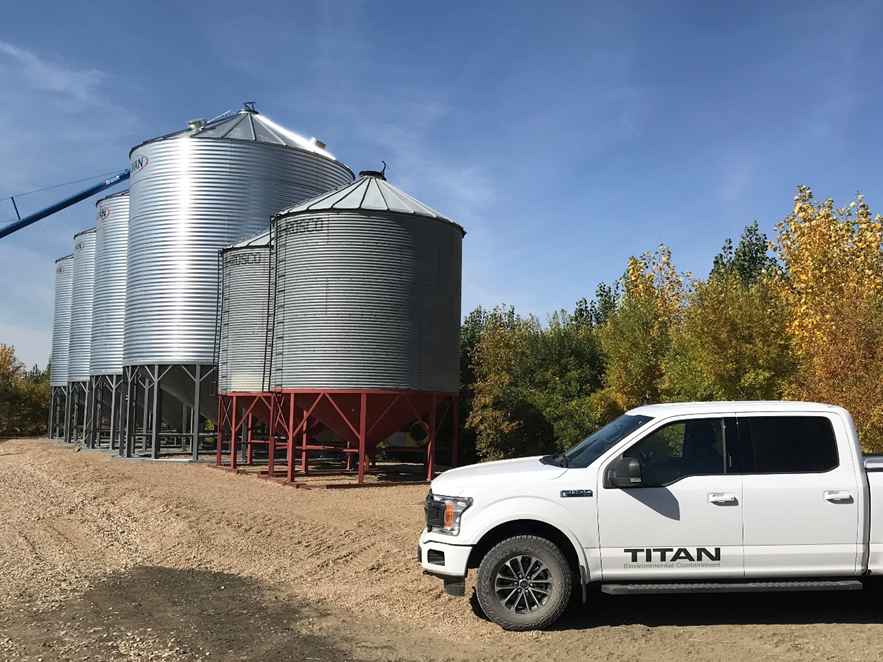

A customer in the agriculture industry contacted Titan seeking a solution to reinforce a base pad that would support four new 10,000-bushel storage silos, also known as hopper bins, used to store livestock feed and grain seed.

Titan Solution

These silos can weigh anywhere from 500,000 to 600,000 pounds when full and must sit on a well-reinforced base to be stable and prevent sinking into the soil. The conventional solution for this is concrete pile reinforcement, which would have cost $80,000. Our team collaborated with the client to design a higher performing and more economical multi-layer geosynthetic base reinforcement solution using Swamp Grid® geogrid composite, type 33 gravel, followed by a layer of geotextile and Titan Earth Grid® geogrid, topped with another layer of type 33 gravel.

Swamp Grid® is an advanced composite geogrid product consisting of our Titan Earth Grid® heat-bonded to a long-fiber PET nonwoven geotextile.

Achievement

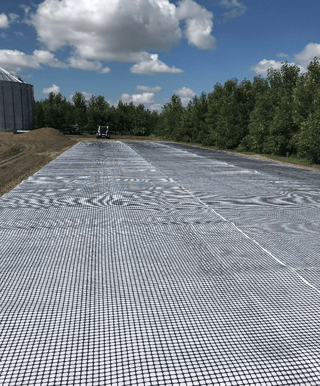

The reinforced base was constructed using 8481 square feet (788 m²) of Swamp Grid® 30 and 6361 square feet (591 m²) of Titan Earth Grid® 24. This solution reduced the amount of aggregate needed and saved the customer a total of $55,000 on their project.
